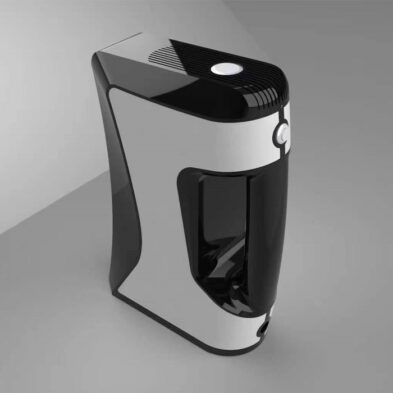

Trimit Handheld 3D scanner

Introducing Trimit 3D scanner – a handheld 3D scanner manufactured in China and training and supported by Solid Vision Mumbai. India

Trimit Color Handheld 3D scanner is a high-precision full-Color 3D scanner with texture capture. Two 16mm/5 MP cameras are built into the body, can scan objects up to 50 – 1000 mm, one frame extension 1280*800, with scanning accuracy up to 0.04 mm.

This 3D scanner with texture capture is an excellent choice for full Color scanning of objects with higher accuracy up to 0.05 mm.

Two 16mm/5 MP cameras are embedded in the body, can scan objects up to 50 – 1000mm, one frame extension 1280*800.

• Scanning modes: 3D scanner can work in monochrome and full Color mode with texture capture.
• Fully manual scanning, you don’t need any additional accessories or packages.
• Laser location detection, capturing data up to 3 million points per second.
• Large illumination area, for medium to large objects. Scanning volume from 5 cm to 100 cm. positioning by both tags and object surface features.
• Utilizes structured light technology and is completely safe for human scanning.
• Real-time scanning. Frames are automatically spliced in real time, filling in the gaps. Data is automatically processed and minimized for increased speed.
• High accuracy down to 0.04 mm. Can be used for scanning carvings, human face and body, artwork, etc.

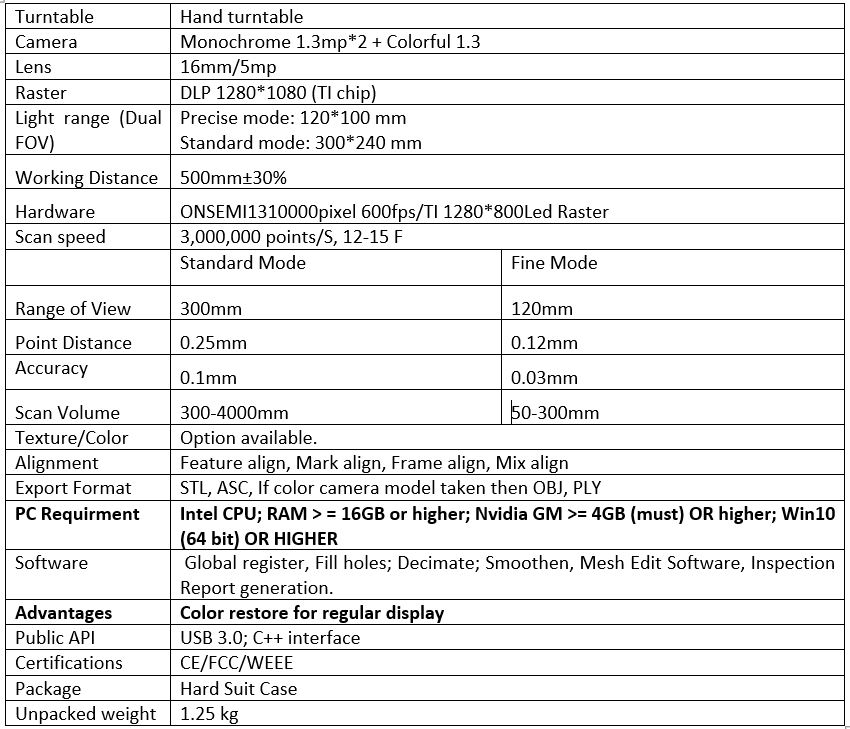

Technical Specifications

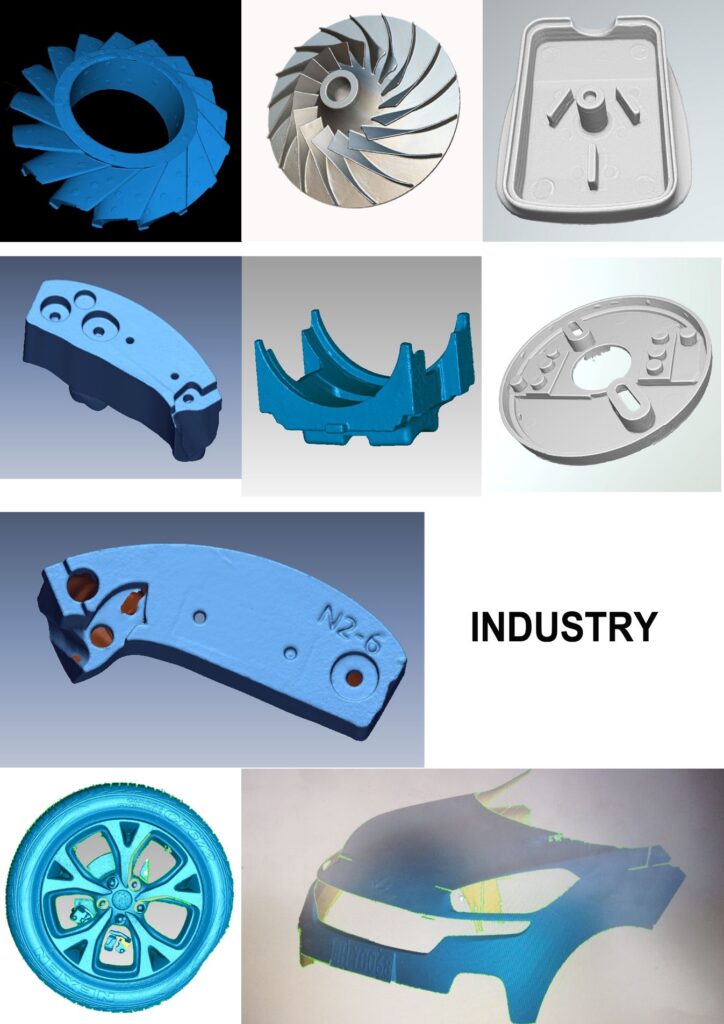

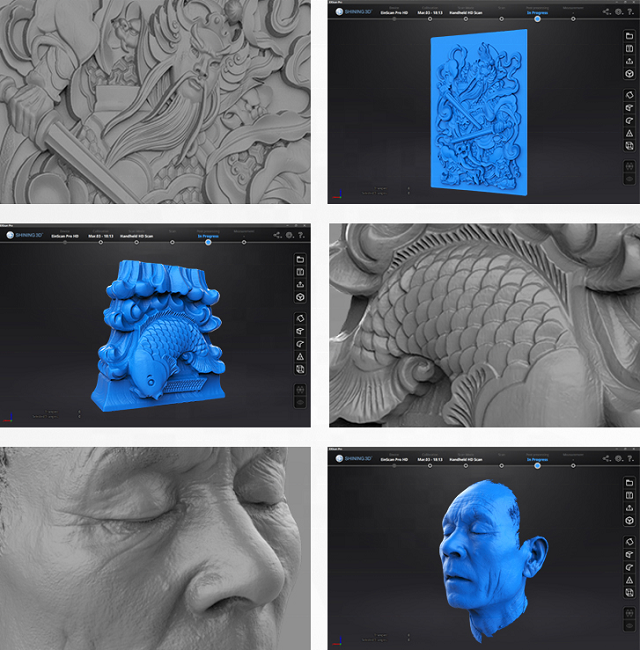

Sample Data
